Recently, Shanghai Liva completed a vibration isolation project for an intelligent measurement and control company's onboard precision measurement cabinets, supplying standard wire rope isolators for mobile surveying, onboard measurement and control, and onboard server cabinets. All equipment has been installed, commissioned, and has undergone long‑term stable on‑road operation, effectively addressing industry pain points such as equipment resonance, measurement data drift, and electronic component damage caused by vehicle bumps, rapid acceleration, and road impacts. This provides a comprehensive vibration protection solution for the long‑term stable operation of onboard precision equipment.
Project Operating Pain Points: Multiple Equipment Failures Caused by Onboard Cabinet Vibration
Onboard measurement and control cabinets and surveying cabinets house high‑precision sensors, acquisition hosts, storage hard drives, and signal transmission modules. During vehicle operation, they continuously endure multi‑dimensional vibration and instantaneous strong impacts – urban bumpy roads, off‑road rugged sections, vehicle start/stop braking, and high‑speed cornering all continuously transmit vibration energy, creating tri‑axial composite vibration conditions (vertical, horizontal, and lateral).
Precision measurement data distortion
Continuous low‑frequency resonance causes sensor zero drift and fluctuating acquisition values, making surveying and inspection data errors exceed allowable limits and failing to meet onsite operational accuracy requirements.
Severe electronic hardware wear
Long‑term vibration leads to PCB solder joint detachment, loosening or dislodging of memory modules and hard drives, and poor interface contacts, resulting in frequent system crashes and persistently high maintenance and replacement costs.
Poor adaptability of conventional isolation solutions
Common rubber pads on the market have high natural frequencies, tend to harden at low temperatures and accelerate aging at high temperatures, with weak tri‑axial isolation capability – they only mitigate vibration in a single direction. Spring isolators without built‑in damping continue to rebound and amplify vibration after impacts, failing to address both high‑ and low‑frequency vibration and shock protection simultaneously. Conventional products also lack sufficient temperature and salt‑spray resistance, leading to premature failure in complex onboard environments.

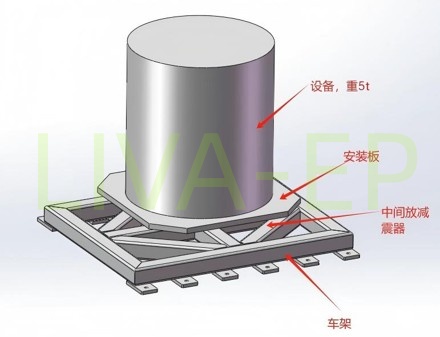

Project Solution

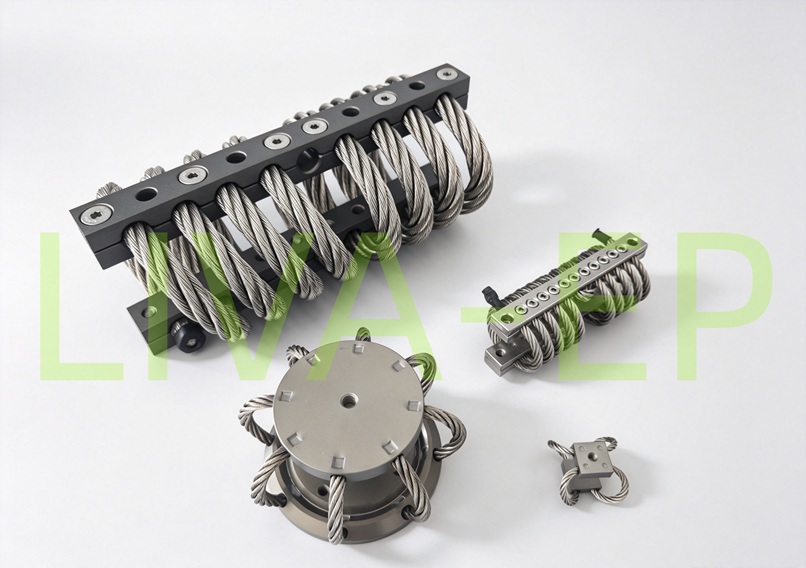

LIVA-EP® GS Series Wire Rope Isolators – Specifically Adapted for Onboard Cabinets
For this project, the uniformly selected solution is Shanghai Liva's self-developed GS series aviation-grade wire rope isolators, custom-matched to address the four core operating conditions of onboard cabinets: triaxial vibration, wide temperature range, high shock, and compact installation space. Leveraging an all-metal dry friction damping structure, they perfectly meet the vibration isolation requirements of mobile onboard precision equipment.

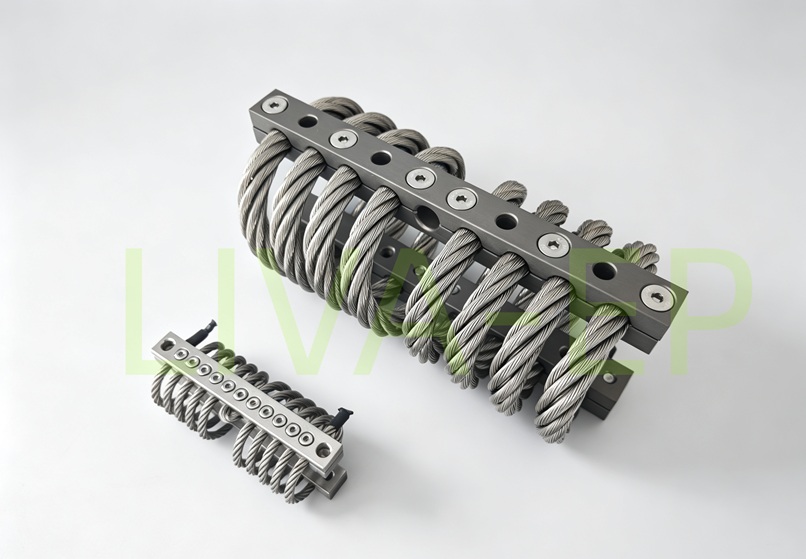

Core Technical Advantages of the Product

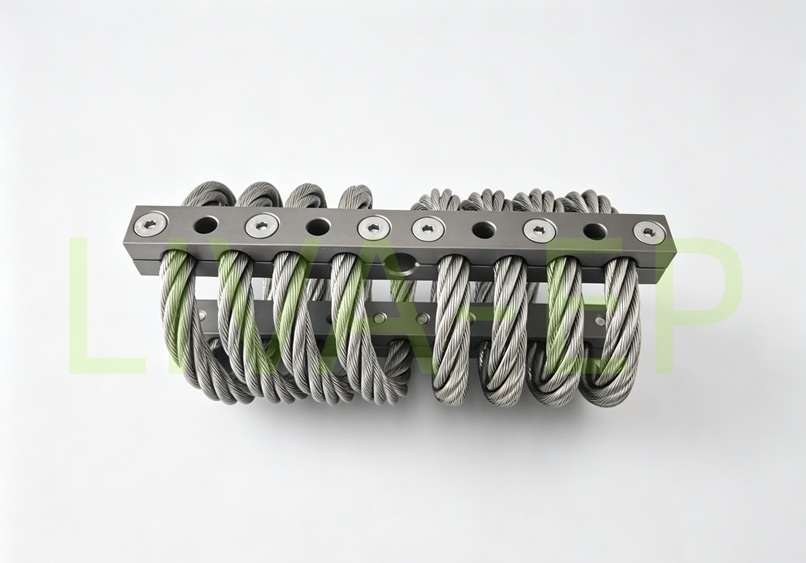

stainless‑steel integrally wound structure, resistant to harsh onboard environments
The isolator’s upper and lower clamping plates and the resilient wire rope are both made of 304 stainless steel, with no rubber or plastic components subject to aging. Leveraging an ultra‑wide temperature range of ‑70°C to +260°C, the product withstands onboard sunlight exposure, extreme cold, rain, snow, and road salt spray corrosion. The wire rope is compression‑locked and formed with no loose strands or detachment risks, ensuring no creep deformation during prolonged operation, requiring zero routine maintenance, and significantly reducing the frequency and cost of later‑stage inspections and repairs for onboard equipment.
Triaxial omnidirectional vibration isolation, covering the full 5–10 Hz low‑frequency band
Unlike conventional isolators that only mitigate vibration in a single direction, the wire rope helical structure provides simultaneous vertical, lateral, and horizontal elastic buffering capability. The product's ultra‑low natural frequency of 5–10 Hz precisely matches the low‑frequency excitation range of onboard road conditions, effectively avoiding resonance with the cabinet and sensors, thereby fundamentally eliminating driving resonance and data drift issues.
High internal dry friction damping of 0.15–0.4, excellent shock absorption and isolation efficiency
When vehicles encounter potholes or steep slopes generating instantaneous strong impacts, the multiple wire rope strands interact with each other to create high damping of 0.15–0.4, rapidly absorbing impact kinetic energy and suppressing equipment rebound. Under steady‑state driving, triaxial vibration isolation efficiency exceeds 95%, greatly reducing the vibration acceleration transmitted to electronic components inside the cabinet. Hard drives, sensors, and circuit boards are fully protected, with measured data fluctuation reduced by over 90%.
Nonlinear stiffness characteristics, wide load range of 0.45–2000 kg for onboard variable load conditions
With a progressively soft nonlinear mechanical characteristic, the product offers a full‑range load capacity from 4.5 N to 20,000 N, covering the deadweight of various onboard cabinets. It maintains stable isolation under light loads, full loads, and instantaneous impact loads without isolation failure due to changes in internal equipment configuration or vehicle load variations. Supports multiple mounting orientations including compression, 45° inclined, and side‑hung installation, fitting compact spaces at the bottom, side walls, and top of onboard cabinets. Retrofitting requires no major modifications to the original cabinet structure, making installation quick and convenient.
Military‑grade shock resistance, multi‑scenario onboard safety assurance
The product has been rigorously tested for vibration and shock in accordance with the GJB150 military environmental standards, capable of withstanding instantaneous shocks of up to 100 G, making it ideally suited for high‑intensity driving scenarios such as off‑road vehicles, construction mobile equipment, and emergency communication vehicles. A single cabinet is equipped with four isolators arranged symmetrically, ensuring even load distribution and preventing cabinet tilting or shifting, suitable for long‑term uninterrupted field operations.
Project Implementation Results
After the complete GS series wire rope isolation system was installed in the vehicle and subjected to real‑road testing, all issues were thoroughly resolved
Data accuracy achieved
Zero drift of the built‑in surveying sensors in the cabinet was completely eliminated. Continuous 8‑hour road test data remained stable with no abnormal fluctuations, meeting high‑precision mobile measurement operation standards.
Equipment failure rate significantly reduced
After two months of round‑the‑clock on‑road operation, there were no incidents of hard drive detachment, solder joint failure, or system crashes. Hardware replacement and maintenance costs were reduced by 85%.
Environmental adaptability fully validated
Long‑term testing under winter low temperatures, summer high temperatures, rainy wet conditions, and coastal salt‑spray road sections showed no aging, corrosion, or failure of the isolators, with a service life far exceeding that of traditional rubber isolation products.
Outstanding retrofit cost‑effectiveness
Standardized modular models enabled rapid assembly, reducing cabinet retrofit installation time by 70%. No additional cabinet reinforcement or space modification costs were incurred, resulting in lower total lifecycle maintenance expenses.
The successful implementation of this onboard cabinet wire rope vibration isolation project represents a typical practice in Shanghai Liva's commitment to vibration isolation for mobile precision equipment. It further enhances the company's solution system for mobile scenarios including onboard surveying, onboard measurement and control, onboard servers, and unmanned vehicle airborne equipment, fully validating the professional vibration isolation capabilities of the LIVA-EP® GS series wire rope isolators under multi-vibration, high-shock, and wide-temperature harsh operating conditions.
For a long time, mobile surveying vehicles, emergency communication vehicles, onboard inspection equipment, and cabinets on unmanned transport platforms have commonly suffered from road vibration and instantaneous impact disturbances. Short service life of precision electronic equipment and unstable measurement data have been persistent industry challenges. Relying on its core self-developed wire rope isolation technology and a complete standardized parameter system, Shanghai Liva can match corresponding load specifications based on cabinet weight, vehicle operating conditions, and installation space, providing customized vibration isolation solutions.
Looking ahead, the company will continue to iterate its wire rope isolation product series, optimize lightweight and heavy-load custom models, and expand its product parameter specification matrix. By deepening its presence in the onboard mobile precision equipment isolation sector, Liva will consistently deliver highly reliable, highly adaptable isolation products and comprehensive solutions, ensuring the stable operation of various onboard precision equipment and supporting the reliability upgrade of the mobile measurement and control industry.
