Project Background
Polar scientific research is a core strategic domain in national marine science and polar exploration. As the key mobile platform for polar expeditions, Antarctic research vessels operate for extended periods under extreme and harsh conditions, including intense vibration and complex sea states. The various precision scientific instruments, data storage units, and control cabinets onboard are critical equipment for research operations. Their stability and vibration resistance directly determine the accuracy of data collection and the safety and reliability of equipment performance.
In this project, Liwa Shanghai customized a dedicated rack-mount shock-absorbing cabin for a certain Antarctic research vessel, aiming to resolve issues commonly encountered by traditional cabinets during polar voyages—such as equipment malfunctions, data anomalies, and structural deformation caused by hull vibrations. Leveraging specialized structural design and precision manufacturing processes, the company completed the development, assembly, and delivery of the customized shock-absorbing cabin. Throughout the project, strict confidentiality was maintained regarding the collaborating enterprise's information. The equipment was ultimately delivered successfully, with all performance indicators meeting the standards required for polar scientific research operations.
Core Design and Implementation Content
(1) Overall Structure: External Shock-Absorbing Cabin Enclosing the Cabinet, with a Dual-Layer Protection System

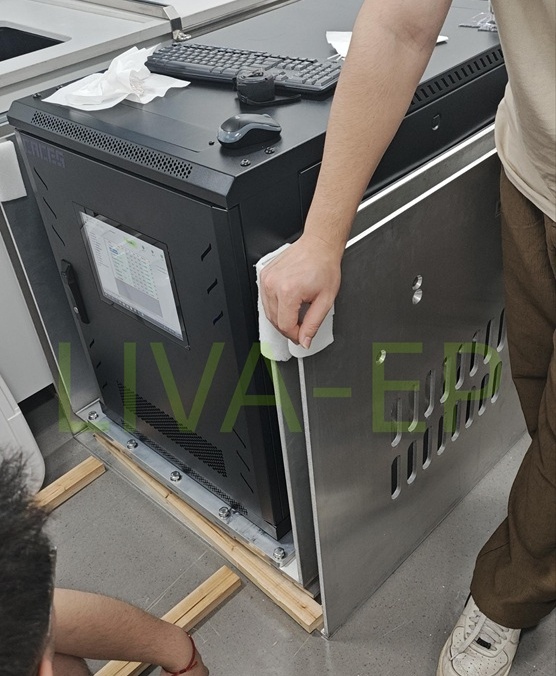

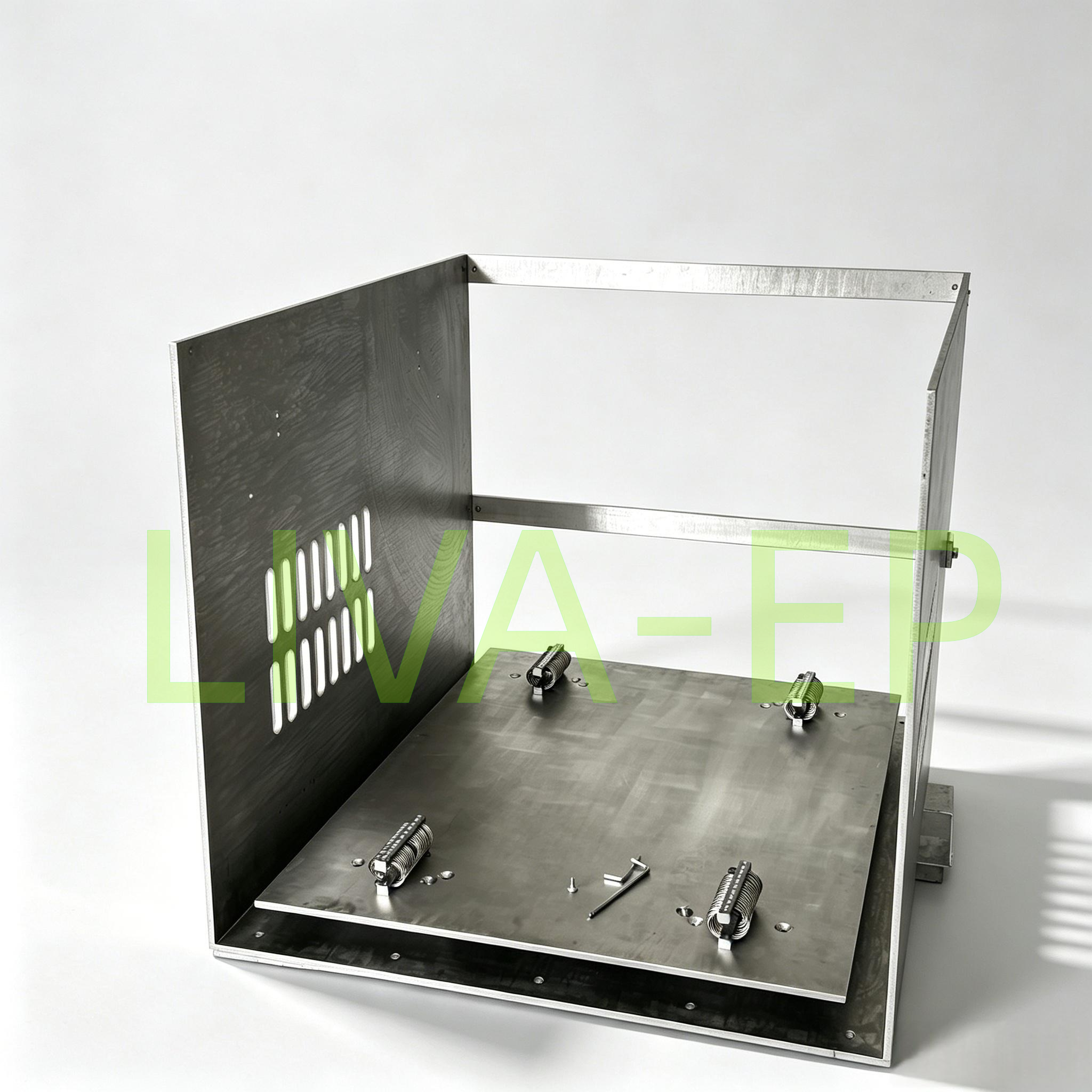

The project adopts a nested "box-in-box" structure, with the cabin serving as the overall buffer carrier. The cabinet is placed inside the shock-absorbing cabin, and the U-shaped double-layer frame is perfectly matched to the cabinet. Wire rope vibration isolators are installed inside the shock-absorbing cabin to isolate both irregular, sporadic vibrations transmitted from the hull and steady-state vibration excitations generated by onboard equipment, preventing vibration from being directly conducted to the internal cabinet and precision instruments.
This shock-absorbing cabin features an open-frame design. During manufacturing, even the slightest stress can cause deformation of the cabin structure; therefore, the installation of the vibration isolation elements requires precise calibration.
(2) Material Selection: Adapted to the Special Polar Environment of Ships
This project includes two independent shock-absorbing cabins, designed with differentiated materials in a split configuration to address the multiple stringent operating conditions of polar research vessels, including salt spray corrosion and magnetic interference protection for precision detection equipment:
One shock-absorbing cabin is constructed entirely of 304 stainless steel with a brushed surface finish, offering excellent salt spray resistance and anti-oxidation properties. It can maintain stable performance over long-term service in marine environments, resisting corrosion and structural deformation. The other cabin features a non-magnetic aluminum frame with an anodized surface treatment, which effectively avoids magnetic field interference from metals and ensures accurate and reliable data from the ship's scientific detection instruments. The two material-specific cabins each serve their respective purposes, matching the installation requirements of different equipment while balancing structural load-bearing capacity, marine corrosion protection, and non-magnetic operational standards—perfectly suited to the special operational conditions of polar research vessels.
(3) Production and Quality Control

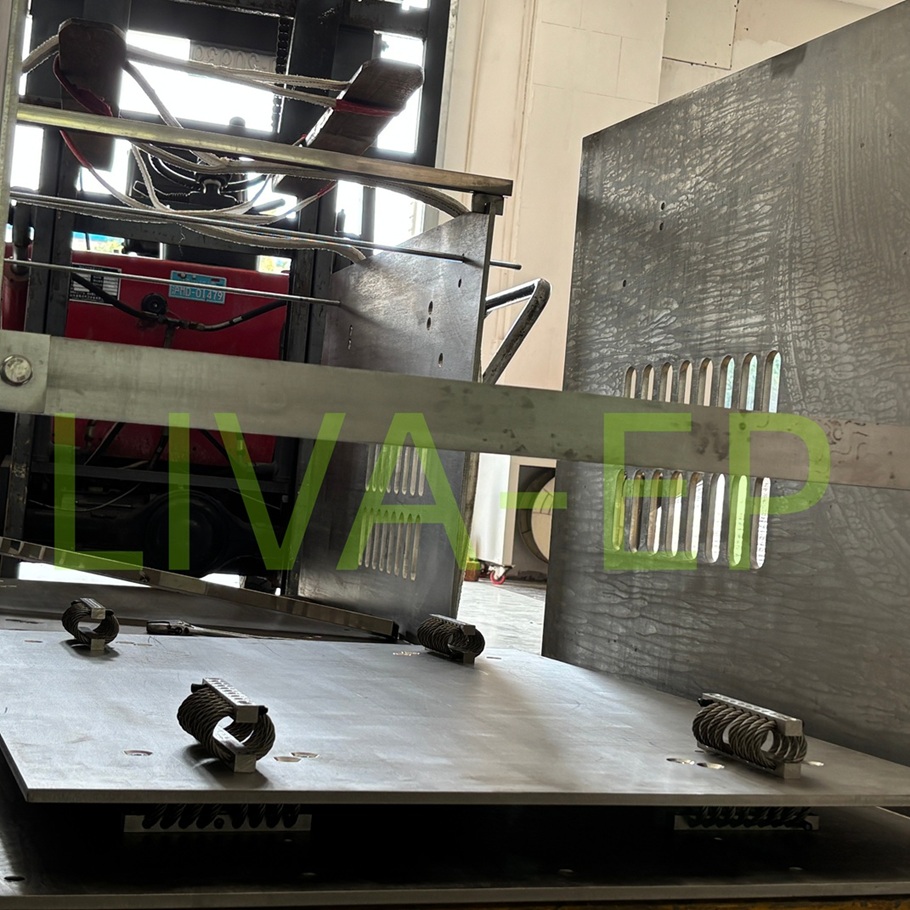

This shock-absorbing cabin is a specialized precision protective device for marine vessels. Dedicated quality inspection standards have been established across the entire process, including sheet metal forming, vibration isolator assembly, and surface treatment. During the sheet metal processing stage, strict control is exercised over the cabin's length, width, and height tolerances. During assembly of the vibration damping components, flatness and installation clearances are calibrated for each unit. The complete quality control process effectively prevents dimensional deviations and poor assembly fit that are prone to occur during cabin fabrication.
Project Implementation Outcomes and Core Advantages
(1) Customized Structural Advantages — Directly Addressing the Pain Points of Polar Operating Conditions
This project adopted a split-supply collaborative model, with our side focusing on the outer shock-absorbing protective cabin while the client independently supplied the internal cabinets. This clear division of work offers greater flexibility. The independent shock-absorbing cabin concentrates all protective functions—vibration damping, corrosion protection, and magnetic shielding—without altering the client's existing cabinet structure. This significantly enhances the resistance of precision instruments to harsh environments without requiring replacement of the client's current equipment, providing differentiated adaptation to the retrofit needs of research vessels.
(2) High-Precision Processes Guarantee Delivery Quality
Leveraging mature capabilities in specialized sheet metal fabrication and vibration isolator assembly, we strictly implemented a ±1mm tolerance control standard. The shock-absorbing cabin demonstrated excellent compatibility with the internal cabinets, passed all technical inspections on the first attempt, and achieved smooth overall assembly—fully meeting the project delivery schedule. This showcases our strength in precision machining and complete-system integration for specialized equipment.
(3) Successful Delivery of Shock-Absorbing Cabin Systems and Strict Confidentiality Management
The project successfully delivered the complete set of external shock-absorbing cabins, which provide a stable protective environment for high-precision scientific instruments aboard the research vessel, ensuring the normal conduct of polar marine scientific operations. Strict confidentiality requirements were enforced throughout the project, with the collaborating enterprise's name withheld, and the scientific support delivery task was completed in full compliance.
This complete project of shock-absorbing cabins with built-in cabinets is a typical successful case of customized special protective equipment deployed under extreme marine operating conditions. The project breaks through traditional cabinet design concepts by employing independent shock-absorbing cabins as the outer protective carrier, comprehensively matching the stringent requirements of Antarctic research vessels.
Building on the technical expertise accumulated from this Antarctic research vessel shock-absorbing cabin project in polar operating conditions, the company will continue to deepen its core technologies in vibration and noise reduction for extreme environments, strengthen cooperation in the research vessel sector, and expand into the vibration damping supporting equipment market for deep-sea specialized vessels. The company will persistently enhance product reliability and full-lifecycle service capabilities, steadily advancing the independent supporting capability for polar vessel vibration damping solutions.
